Temperature Cycling and Thermal Shock Testing Explained
Most engineers understand that a single hot soak or cold exposure can reveal whether a material survives a temperature extreme. Fewer understand why a part can pass both of those tests and still fail in the field. The answer is the transition.
Temperature cycling testing measures what happens when a material is forced to move through hot and cold conditions repeatedly. It’s where most thermal field failures actually begin. This post covers what temperature cycling and thermal shock testing measure, how each test works, and which OEM specifications require them.
The transition is where failures begin
A part in service doesn’t live at a static temperature. It heats up and cools down. Over and over. An interior surface under summer solar load can reach temperatures well above ambient. The same part in a winter parking lot drops below freezing overnight. Then it heats up again the next morning.
Each transition creates stress. Dissimilar materials in an assembly expand and contract at different rates. Repeated cycling loads those interfaces the same way a wire gets fatigued by repeated bending. The damage accumulates at stress concentration points until something gives. Our existing post on how temperature cycling tests prevent material failures covers the field failure patterns in detail.
What temperature cycling actually measures
When a material is cycled between hot and cold conditions, several failure mechanisms become active.
Thermal expansion mismatch occurs because different materials expand at different rates. Repeated cycling creates shear stress at interfaces, leading to delamination or adhesive bond failure. Fatigue from repeated strain accumulates over time. Small dimensional changes repeated thousands of times generate cracks that initiate at stress concentration points and grow with each cycle. Dimensional instability shows up as warping, sinking, or loss of fit-up tolerance. Property shifts mean that some polymers soften under heat cycling, others embrittle, and stress relaxation in fastened assemblies results in loss of clamp load over time.
What Is Thermal Shock Testing?

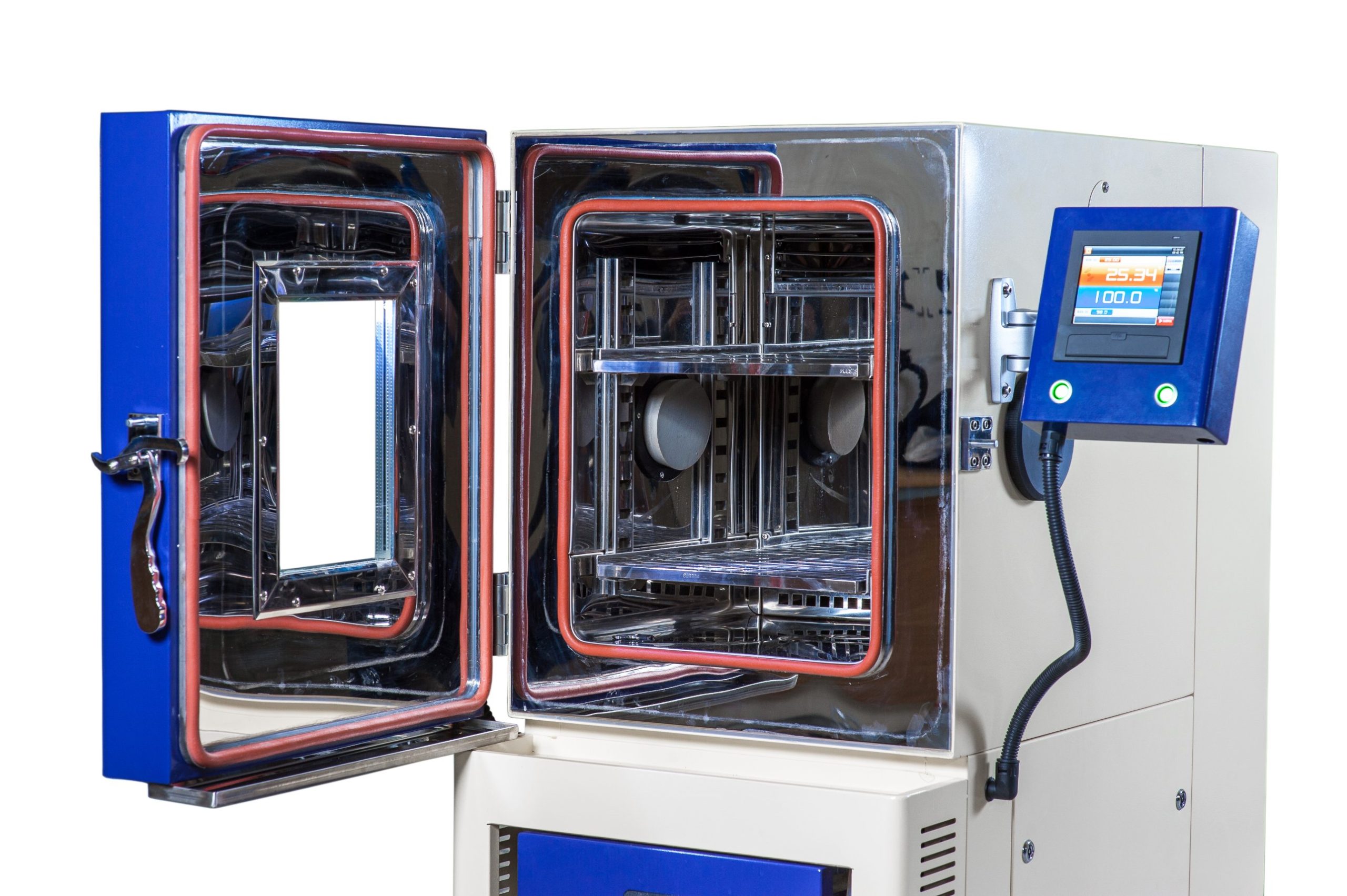

Thermal shock testing moves a specimen from a hot zone to a cold zone, and back, with almost no transition time. Air-to-air thermal shock testing typically uses a two-zone chamber with a basket that carries parts between the hot and cold zones in seconds. There is no controlled ramp. The surface of the part reaches the new temperature while the core is still at the old one, so the thermal gradient through the cross-section is far steeper than in temperature cycling.
That gradient is what thermal shock testing is designed to find. Paint and coating films crack or lose adhesion on plastic substrates. Bonded joints and overmolded interfaces separate. Rigid and glass-filled plastics can crack at the low temperature end of the cycle, where many polymers are at their most brittle. A part that survives a slow temperature cycle can still fail a thermal shock test.
Temperature cycling vs thermal shock: which test does your part need?
Temperature cycling uses controlled ramp rates to transition specimens between hot and cold conditions at a defined pace. It tends to reveal slow fatigue, warping, and loss of fit that build up over hundreds of cycles. Thermal shock involves rapid transfer, often within seconds, between two chamber zones. It tends to reveal brittle cracking and interface failures that appear in the first few transitions.
The right method depends on the application and the OEM requirement, and many programs call for both before a product is approved for production. Both tests are part of how a supplier shows the long-term reliability of a component. Thermal shock testing is in our accredited scope under the specifications listed below.
Which OEM specifications cover thermal shock and temperature cycling
The thermal shock methods on our A2LA scope are:
- Ford FLTM BI 107-05: Thermal shock and environmental cycling
- GM GMW15919: Temperature cycling and thermal shock
- Stellantis LP-463PB-64-01: Thermal shock and cycling for plastic components
- Stellantis LP.7M061: Thermal shock
- Rivian RTS 1673: Environmental testing
Each specification carries its own cycle profile, temperature range, dwell time, and acceptance criteria. Use our Tests We Perform page to confirm the specific method your program requires, and download our Testing Readiness Checklist to prepare your samples and documentation before submitting.
How long a thermal cycling program takes
A 500-cycle program with two-hour dwell times at each extreme takes several weeks. Including conditioning, test execution, dimensional measurement, and report preparation, a complete thermal cycling evaluation may require three to five weeks from sample receipt. If a program launch depends on this data, build that lead time into the schedule.
If you have been handed a thermal cycling specification and are not certain which method it requires, we can help sort that out before your first sample ships.
Request a quote to lock in your thermal cycling schedule at gptesting.com
What is temperature cycling testing for automotive materials?
Temperature cycling testing exposes material specimens or assemblies to repeated transitions between defined hot and cold temperature extremes. The test reveals interface delamination, adhesive bond failure, dimensional instability, and fatigue cracking that a single static exposure test cannot detect. It is a required qualification test for most automotive interior and exterior plastic components.
What is the difference between temperature cycling and thermal shock testing?
Temperature cycling uses controlled ramp rates to gradually transition specimens between temperature extremes. Thermal shock involves rapid transfer between two chambers, imposing a more severe thermal gradient. OEM specifications define which method applies to a given component and application. Thermal shock testing is in our accredited scope under the specifications listed in this post.
My OEM specification calls for temperature cycling. How many cycles does that require?
Cycle count depends on the OEM specification. Common requirements range from 1 to 500 cycles. Each method and material specification defines its own cycle count, temperature range, and dwell requirements. We confirm the applicable revision and cycle parameters before any program starts.
Why do automotive parts fail during temperature cycling but pass static exposure?
Static exposure tests confirm that a material survives a temperature extreme at a single point in time. Temperature cycling tests the repeated transition between extremes, generating cumulative fatigue at interfaces, adhesive bonds, and stress concentration points. Most field thermal failures are caused by accumulated cycle stress, not a single exposure event.
How long does thermal cycling testing take at an accredited lab?
A complete thermal cycling evaluation including conditioning, exposure, dimensional measurement, and reporting takes between 1 day and several weeks from sample receipt, depending on cycle count and dwell requirements. Build that time into the program schedule.
